Saving Faucet Faucet

Product Description

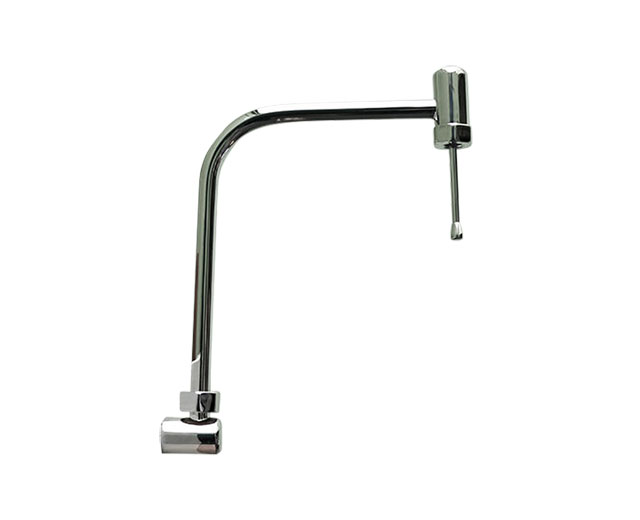

Saving Faucet for Kitchen - On wall with 02 opening

The SAVING FAUCET works only with automatic opening rod, in momentary and permanent modes: Momentary: The water will only flow by pushing the rod horizontally (sideways) and will stop flowing when it stops pushing. Permanent: The water will flow continuously pushing the rod upwards, being held by a magnet in the upper part, will stop flowing when the rod is pulled down..

Altura: 24 cms..

Longitud: 19 cms..

Peso: 530 grms..

Technical Information

Caudal: 0.2 Lt./min = 0.053 Gl./min.
Operating Pressure: 0-100PSI, 0-689kPa (0-6,9 kgf/cm2)
Maximum temperature: 50°C.
Diameter: 1/2"
Reference Norms: NTP 350.150:2004 & NTP 350.151:2004
Parts made of bronze and stainless steel.
The Magnetic System for Flow Control, is based on a magnet of rare earth neodymium, 9mm. diameter by 2mm. of thickness, with guarantee of 100 years by its manufacturer.
Product manufactured in extruded bronze rods and tubes at 1600 pounds pressure with an alloy of 60-38-2 which is the international standard for faucets.
The shutter disc for the double opening is made of stainless steel.
3.5mm of thickness sealing gasket and regulating diaphragm both of Nitrile.
The automatic control system is a stainless steel SEAGER ring.
The chrome plated has a base of copper, nickel and chromium itself of 10 microns.
Each Faucet is tested at 100 pounds of pressure.
